Arduino/Genuino Project "Daramod" Part 1 : RX

A GPS Time and Frequency Reference Receiver with the NEO-7N

✈ The building Blocks • Functional Description

The mastermind of this design is of course the Arduino Nano Every. It displays the status on the 128 x 64 px oled display. The Nano also decodes the dataflow f the U-Blox NEO-7N, which is the workhorse of this Reference Source.

The USB port of the u-blox module has - as protection - only twice those 100 Ω resistors, as this port is used only once, during production. It is then covered with one of those fancy 'hacked' stickers, beeing part of every genuine arduino.

We use the 1 PPS pin of the U-BLOX module to synchronize a VCXO, running at 10 MHz. This is done by a ADF4002 (PLL). And yes, the NEO-7 has been re-programmed to output 10 kHz. (Details see below).

The 10 MHz is divided down to simultaneously generate the 1 pps pulse as well as a 1 MHz TTL pulse.

The device is powered by a 9 V, 800 mA Plug-in power supply. (Needs about 190 mA)

Dara [in Thai ดารา] means "Star" - unfortunately the celebrity one. We aimed for the other one, namely this planet thing. Errors happen ...

✈ The workhorse : U-Blox's NEO-7N

Inside the module, courtesy of U-Blox,

"The NEO-7 series of standalone GNSS modules benefit from the exceptional performance of the u-blox 7 GNSS (GPS, GLONASS, QZSS and SBAS) engine. The NEO-7 series delivers high sensitivity and minimal acquisition times in the industry-proven NEO form factor. The NEO-7 series provides maximum sensitivity while maintaining low system power. The NEO-7M is optimized for cost sensitive applications, while NEO-7N provides best performance and easy RF integration. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. The NEO-7 series combines a high level of integration capability with flexible connectivity options in a miniature package. This makes it perfectly suited for industrial applications with strict size and cost requirements. The I2C compatible DDC interface provides connectivity and enables synergies with u-blox SARA, LEON and LISA cellular modules.". Says the datasheet.

Possible (other) Candidates :

Module	Memory	Oscillator	Remarks
NEO-6T	ROM	TCXO	Needs Eeprom / Battery
NEO-7M	ROM	XCO	Needs Eeprom / Battery
NEO-7N	FLASH	TCXO	our selection
NEO-M8M	ROM	XCO	Needs Eeprom / Battery
NEO-M8N	FLASH	TCXO
NEO-M8Q	ROM	XCO	Needs Eeprom / Battery

Inside the predecessor module (6M), found at Ban Mo (บ้านหม้อ), Bangkok, Thailand.

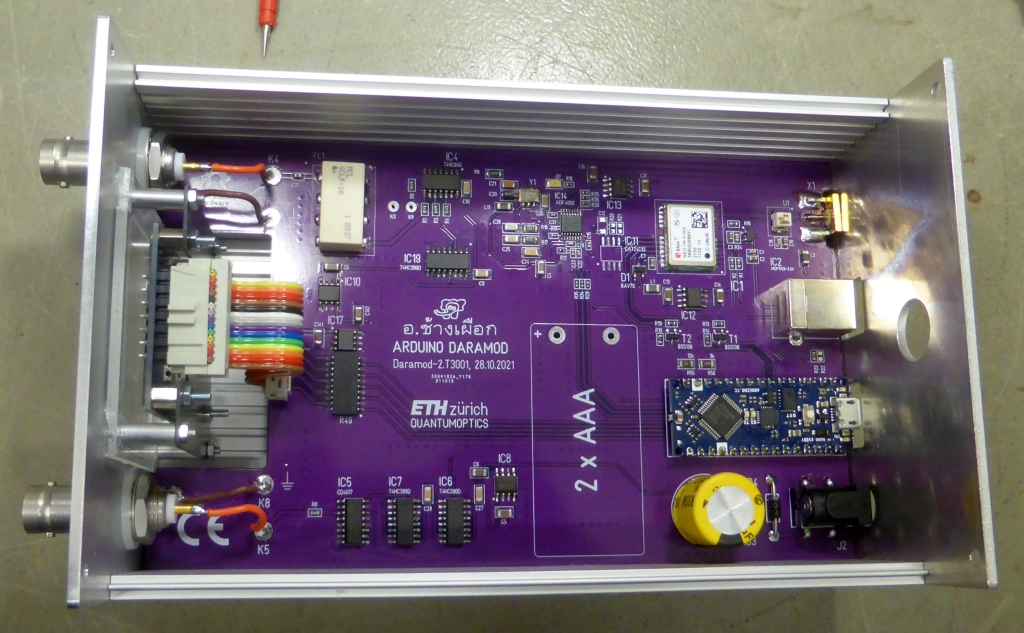

Inside the case of the FuMu (Version 2). Some 'optimisations' were necessary.
Battery and Eeprom is not assembled here, as our NEO-7N module has a built-in Flash memory.

✈ Jitter cleaning PLL

✈ Downloads

✈ Arduino Sketch - The Code

Double click on code to select ...

/* //////////////////////////////////////////////////////////////////

  ARDUINO/Genuino Project "DARAMOD",
  A GPS Time and Frequency Reference Receiver with the NEO-7N
  https://www.changpuak.ch/electronics/Arduino-Daramod.php
  Software Version 4.0 - 26.11.2021 by ALEXANDER SSE FRANK,

  CREDITS :
  https://simple-circuit.com/arduino-gps-clock-local-time-neo-6m/

////////////////////////////////////////////////////////////////// */

#include <Adafruit_GFX.h>
#include <Adafruit_SH1106.h>

// DISPLAY
#define OLED_MOSI  7
#define OLED_CLK   8
#define OLED_DC    5
#define OLED_CS    4
#define OLED_RESET 6


Adafruit_SH1106 display(OLED_MOSI, OLED_CLK, OLED_DC, OLED_RESET, OLED_CS);

#if (SH1106_LCDHEIGHT != 64)
#error("Height incorrect, please fix Adafruit_SH1106.h!");
#endif

// VCXO
const int PLL_LOCK = A1 ;
const int PLL_LE = 10 ;
const int PLL_DATA = 11 ;
const int PLL_CLOCK = 12 ;

// GPS
const int NEO_RX = A3 ;
const int NEO_TX = A2 ;

#include <SoftwareSerial.h>

#include <TinyGPS++.h>        // include TinyGPS++ library
#include <TimeLib.h>          // include Arduino time library

TinyGPSPlus gps ;
SoftwareSerial ss(NEO_RX, NEO_TX) ;

// define a clock offset of 3600 seconds (1 hour) ==> UTC + 1
#define time_offset   3600

byte last_second, Second, Minute, Hour, Day, Month ;
int Year ;

static const int MAX_SATELLITES = 40 ;

// /////////////////////////////////////////////////////////////
// SUBROUTINES PLL ADF4002
// /////////////////////////////////////////////////////////////

void WriteADF4002(long payload)
{
  digitalWrite(PLL_LE , LOW) ;
  byte MSB = (payload & 0x00FF0000) >> 16 ;
  byte ISB = (payload & 0x0000FF00) >> 8 ;
  byte LSB = (payload & 0x000000FF) ;
  shiftOut(PLL_DATA, PLL_CLOCK, MSBFIRST, MSB) ;
  shiftOut(PLL_DATA, PLL_CLOCK, MSBFIRST, ISB) ;
  shiftOut(PLL_DATA, PLL_CLOCK, MSBFIRST, LSB) ;
  digitalWrite(PLL_LE , HIGH) ;
}

// /////////////////////////////////////////////////////////////
// SUBROUTINES DISPLAY.
// /////////////////////////////////////////////////////////////

unsigned long NumberSat = 0 ;

void UpdateDisplay()
{
  display.clearDisplay() ;
  display.setTextSize(3) ;
  display.setTextColor(WHITE) ;
  // --------------------------------------------
  // TIME - UTC + TIMEZONE OFFSET
  // --------------------------------------------
  char TimeBuffer[3] = "" ;
  display.setCursor(0,0) ;
  sprintf(TimeBuffer, "%02d",hour()); display.print(TimeBuffer) ;
  display.setCursor(32,0) ; display.print(":") ;

  display.setCursor(46,0) ;
  sprintf(TimeBuffer, "%02d",minute()) ; display.print(TimeBuffer) ;
  display.setCursor(78,0) ; display.print(":") ;

  display.setCursor(92,0) ;
  sprintf(TimeBuffer, "%02d",second()) ; display.print(TimeBuffer) ;
  // --------------------------------------------
  // DAY OF THE WEEK
  // --------------------------------------------
  display.setTextSize(1) ;
  display.setCursor(0,34);
  switch(weekday())
  {
    case 1 : display.print("SUNDAY") ; break ;
    case 2 : display.print("MONDAY") ; break ;
    case 3 : display.print("TUESDAY") ; break ;
    case 4 : display.print("WEDNESDAY") ; break ;
    case 5 : display.print("THURSDAY") ; break ;
    case 6 : display.print("FRIDAY") ; break ;
    default : display.print("SATURDAY") ;
  }
  // --------------------------------------------
  // DAY - MONTH - YEAR
  // --------------------------------------------
  display.setCursor(64,34);
  sprintf(TimeBuffer, "%02d.%02d.%02d",day(),month(),year());
  display.print(TimeBuffer) ;
  // --------------------------------------------
  // LOCKSTATUS
  // --------------------------------------------
  display.setCursor(0,48);
  if(digitalRead(PLL_LOCK)) display.print("LOCKED");
  else display.print("UNLOCKED");
  if(NumberSat > 8) NumberSat = 8 ;
  for(int i=0 ; i<NumberSat; i++)
  {
    display.fillRect(64+i*7,48,4,7, WHITE) ;
  }

  display.display();
}

// /////////////////////////////////////////////////////////////
// S E T U P
// /////////////////////////////////////////////////////////////

void setup()
{
  Serial.begin(115200) ;

  // INIT OLED
  display.begin(SH1106_SWITCHCAPVCC);

  // SHOW STARTUP SCREEN
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0,0); display.print("****");
  display.setCursor(44,0); display.print("DARAMOD");
  display.setCursor(104,0); display.print("****");
  display.drawLine(0, 12, 128, 12, WHITE);
  display.setTextSize(1);
  display.setCursor(0, 21);
  display.println("A GPS TIME FREQUENCY");
  display.setCursor(0, 33);
  display.println("REFERENCE RECEIVER.");
  display.setCursor(0, 45);
  display.println("(C) ETH QUANTUMOPTICS");
  display.setCursor(0, 57);
  display.println("BUILT 26.11.2021");
  display.display();
  delay(3999);
  Serial.println("Setup ....... #1 completed") ;

  // INIT SOFTWARE SERIAL
  ss.begin(9600);

  // INIT ADF4002
  pinMode(PLL_LOCK, INPUT_PULLUP) ;

  pinMode(PLL_LE, OUTPUT) ;
  pinMode(PLL_DATA, OUTPUT) ;
  pinMode(PLL_CLOCK, OUTPUT) ;

  digitalWrite(PLL_LE , HIGH) ;

  // Writing Initialization Latch
  WriteADF4002(0x0D8093) ;
  // Writing Function Latch
  WriteADF4002(0x0D8092) ;
  // Writing R Counter Latch
  WriteADF4002(0x100004) ;
  // Writing N Counter Latch
  WriteADF4002(0x019001) ;
 }


// /////////////////////////////////////////////////////////////
// M A I N L O O P
// /////////////////////////////////////////////////////////////

void loop()
{
  while (ss.available() > 0)
  {
    if (gps.encode(ss.read()))
    {
      // get time from GPS module
      if (gps.time.isValid())
      {
        Minute = gps.time.minute();
        Second = gps.time.second();
        Hour   = gps.time.hour();
      }

      // get date from GPS module
      if (gps.date.isValid())
      {
        Day   = gps.date.day();
        Month = gps.date.month();
        Year  = gps.date.year();
      }

      // update number of satellites
      if (gps.satellites.isValid())
      {
        NumberSat = gps.satellites.value() ;
      }
      else
      {
        if(NumberSat > 0) NumberSat -= 1 ;
      }

      if(last_second != gps.time.second())  // if time has changed
      {
        last_second = gps.time.second();
        // set current UTC time
        setTime(Hour, Minute, Second, Day, Month, Year);
        // add the offset to get local time
        adjustTime(time_offset);
        // show off the results
        UpdateDisplay() ;
      }
    }

  }
}

// /////////////////////////////////////////////////////////////
// END OF FILE.
// /////////////////////////////////////////////////////////////

✈ The Display

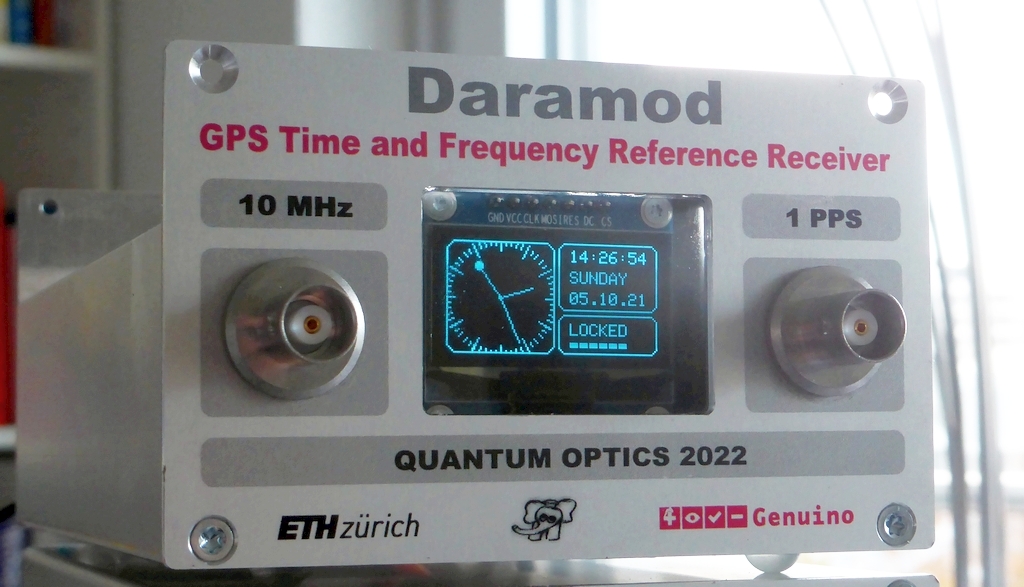

The display on such 'amateur' devices is very often straightforward. This is due to the fact, that the used microprofessor does not have much time to draw fancy screens. The more time spent on display-ing, the less time is available for decoding, as the NEO-7 transmits data at 9600 Baud.

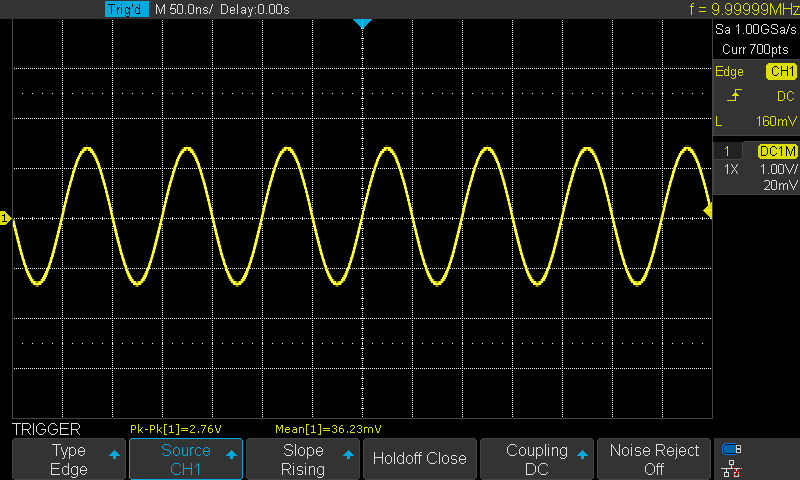

✈ The Outputs / Input

Read more on GPS signals on Wikipedia.

✈ Re-Configuring that NEO-7N thing

The Configuration is done with the u-center (V21.05) from here. Unzip and install it. Connect to the USB-B connector. (The micro-USB connector is for the Arduino Nano Every).

Select View / Configuration View.

Scroll down to TP5 (Timepulse 5)

Select Radiobutton Frequency and Duty-Cycle. Enter 25'000 ( = 25 kHz ) and 50% for the Dutycycle. Both has to be entered twice. Once for the free-running case, once for the locked case.

Click on the button Send (bottom left).

From the top menue now select Receiver / Action / Save Config.

As we use a NEO-7 with Flash memory here, nothing more has to be done. Other types mayst need to populate the batteries and / or the Eeprom.
